Can you flare hard copper pipe?

It is possible to flare Types K, L or M rigid or hard temper tube, though prior to flaring it is usually necessary to anneal the end of the tube to be flared. The copper tube must be cut square using an appropriate tubing cutter.

What type of copper pipe should I use for water?

Green copper pipes, that is type K, are the only type suitable for burying underground. They’re generally used for supplying water into a house. Types L and M are the ideal pipes for supplying water throughout a home. Type L comes with thicker walls than type M.

How long do copper pipes last?

roughly 70-80 years
Types of Piping: What Your Pipes Are Made Of & How Long They Will Last. Copper: Copper piping remains extremely common in plumbing systems across America. Copper pipes last roughly 70-80 years, so if your house was constructed fairly recently, your copper pipes are probably in good shape.

Is PVC piping better than copper?

Resists corrosion and impact damage better than copper pipe because plastic doesn’t corrode, and because PVC pipe is thicker than copper pipe. This means it’s better for areas where the pipe will be exposed in high-traffic areas. This is because PVC doesn’t conduct heat as well as copper does.

What is the best water pipe?

Copper pipes are popular for both hot and cold water pipes because they are heat resistant, resist corrosion, and have natural anti-microbial properties. They are more expensive than plastic pipe options. Average cost-per-foot for copper piping is between $2.50 and $3.50 compared with PEX, which is around $.

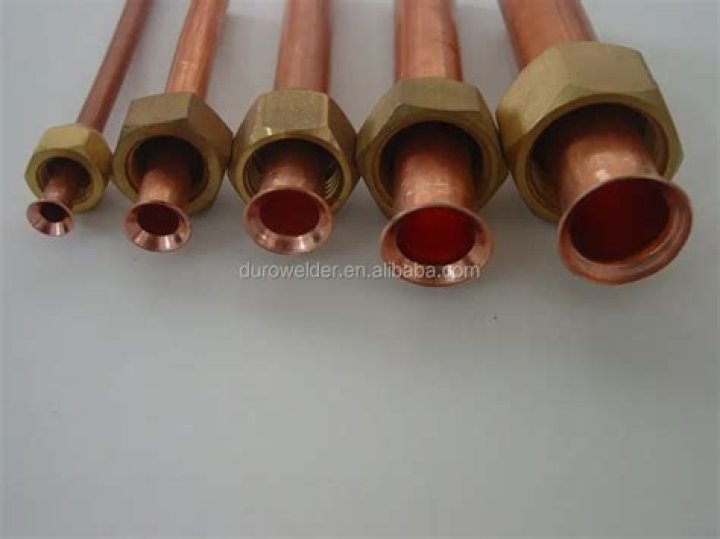

What kind of flares are used on copper pipes?

Water service applications generally use a flare to iron pipe connection when connecting the copper tube to the main and/or the meter. In addition, copper tube used for Fuel Gas (Liquefied Petroleum (LP), Propane Gas or Natural Gas may be joined utilizing flared brass fittings of single 45º-flare type, according to NFPA 54/ANSI.

What causes copper tubing to split when flaring?

Over-tightening when flaring copper tubing will cause the copper to split. Loosen the reamer until you can remove it from the flaring form. Remove the pipe by loosening the clamps on the flare form. In some cases, the flaring is not smooth because the pipe slides as you tighten the reamer.

What’s the best flare angle for copper tubing?

Make sure to use a tool that matches the outside diameter of the tube being flared and that has the appropriate flare angle, commonly 45º (the physical characteristics of which should be in accordance with the Society of Automotive Engineers SAE J533 Standard – Flares for Tubing).

How to flare copper tubing with a reamer?

A reamer has a conical point, a screw, and holding arms; it is the tool that does the actual flaring. To flare the pipe, put it into a hole that has a matching size as the copper on the flare form. Place the reamer on top of the flare form so the conical point is against the tubing. Flaring smaller sized copper tubing

Water service applications generally use a flare to iron pipe connection when connecting the copper tube to the main and/or the meter. In addition, copper tube used for Fuel Gas (Liquefied Petroleum (LP), Propane Gas or Natural Gas may be joined utilizing flared brass fittings of single 45º-flare type, according to NFPA 54/ANSI.

Can a hard temper copper tube be flared?

When flaring Types L or K copper tube, annealed or soft temper tube should be used. It is possible to flare Types K, L or M rigid or hard temper tube, though prior to flaring it is usually necessary to anneal the end of the tube to be flared. The copper tube must be cut square using an appropriate tubing cutter.

Do you need to flare copper tubing for ice maker?

However, flaring copper water tubing for actual water service lines requires skill. A drip on a a copper line for your ice maker, is far different than a drip on your underground main water service line. Copper tubing comes in four different types, based on its wall thickness.

Make sure to use a tool that matches the outside diameter of the tube being flared and that has the appropriate flare angle, commonly 45º (the physical characteristics of which should be in accordance with the Society of Automotive Engineers SAE J533 Standard – Flares for Tubing).
