Can I use a pressure switch without a tank?

Yes they can operate without a pressure tank but doing so will wear out the pump much quicker with the on and off cycling. Of course, but if you have a pressure switch on it, the pump will cycle on and off CONTINUOUSLY while water is being used.

How close does pressure switch have to be to tank?

12″

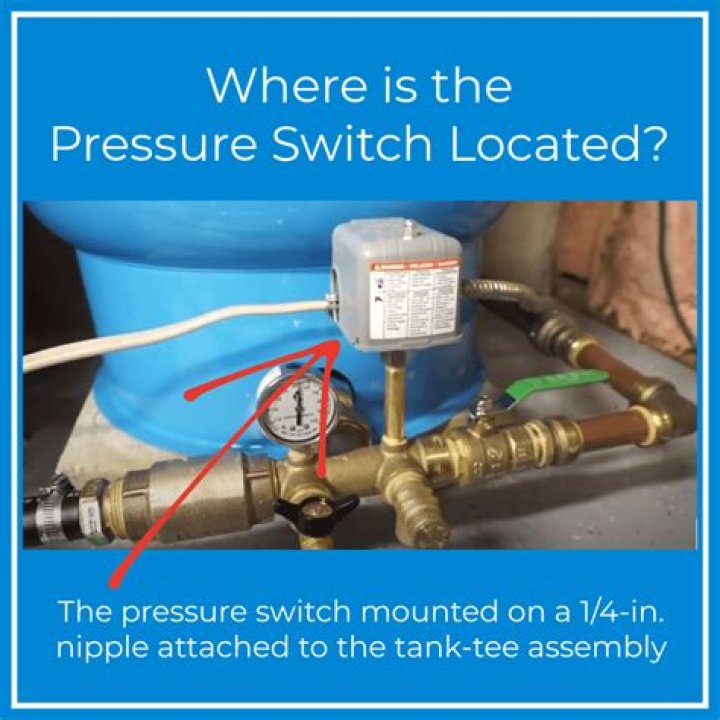

Always have at least 12″ of pipe from the main line to the tank. Install the pressure switch tap on a tee at the end of this length of pipe as close to the tank as possible.

Can I bypass well pressure switch?

You can’t bypass your pressure switch as this is what turns your pump on and off. You could install a filter before the pressure switch, which should stop debris from entering the switch itself. This senses when your well is dry, and shuts off the pump or slows the flow down.

Do you need a pump for a JoJo tank?

Do I need a JoJo tank for my borehole, or can I just pump the water straight into my house from my borehole? Yes, you do require a water tank in between the supply from the borehole to your house. Borehole pumps are made to start, pump water over a distance for a period of time, and then switch off.

Which is the correct pressure switch for a pressure tank?

The three pressure switch settings for pressure tanks are 20/40, 30/50, and 40/60. The first number is the pressure at which your pump turns back on and the second number is the pressure at which your pump turns off (i.e. 20psi on, 40 psi off).

What can I do if my water pressure switch is not turning off?

Try running some water elsewhere in the building to reduce pressure below the cut-in level. You can also try gently tapping on the pressure gauge, the switch, and the tank. Several problems can prevent a pressure control switch from turning off. It’s important to cut power when this happens so the switch won’t burn out.

When do you Know Your pressure switch is failing?

Here are some tell-tale signs that your pressure switch is beginning to fail: Your water pressure is at or above the cut-out pressure, yet the pump doesn’t turn off. Your pump doesn’t turn on at the proper cut-in pressure. You have low water pressure even though the pump is running.

Why is my well pump pressure switch not turning off?

Several problems can prevent a pressure control switch from turning off. It’s important to cut power when this happens so the switch won’t burn out. Check your water supply from the well, along with any leaks which could be affecting your pressure cut-off.

Try running some water elsewhere in the building to reduce pressure below the cut-in level. You can also try gently tapping on the pressure gauge, the switch, and the tank. Several problems can prevent a pressure control switch from turning off. It’s important to cut power when this happens so the switch won’t burn out.

Several problems can prevent a pressure control switch from turning off. It’s important to cut power when this happens so the switch won’t burn out. Check your water supply from the well, along with any leaks which could be affecting your pressure cut-off.

What causes a pressure switch to stop working?

Failed Connection. A malfunction in your switch could indicate a problem elsewhere in the system. For instance, if your piping is of the wrong size, it can cause a leaky connection. This will stop the pressure switch from doing its job effectively.

What should the cut in be on a pressure switch?

If you are finding that the switch is tripping the cut-in pressure is most likely too close to the tank pre-charge. A difference of a minimum of 2-5 PSI is required to ensure the switch won’t trip. For example, if the switch cut-in is 40 PSI then the tank pre-charge should be 35-38 PSI maximum.
