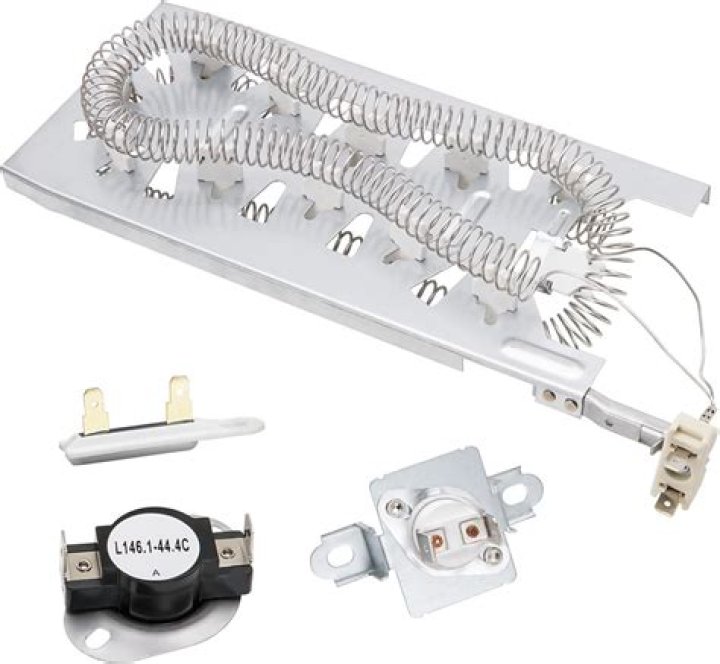

Fortunately, replacing a heating element isn’t a terribly difficult job. You can usually find a replacement heating element at a local hardware store or online by searching for your dryer model number. Once you have the part, unplug the dryer, remove the back panel, remove the connections and install the new one.

Is it worth replacing heating element in dryer?

If your dryer’s heating element burns out more than once within a year or two, the thermal fuse, which is supposed to protect it, is probably defective, so it’s a good idea to replace it. The temperature in the heating chamber may also be too high, and that may be caused by poor venting.

What causes dryer heating element failure?

A dryer’s heating element operates on the same principle as the coil in an electric heater. Among the conditions that can cause elevated temperatures are insufficient airflow in the element compartment, failure of safety devices and a power surge.

Are dryers worth repairing?

Is it worth repairing a dryer? Dryer repairs are worth it if the appliance is less than 4 years old and the cost is less than $400. For older dryers and/or costly repairs, replacing your appliance is more cost effective.

How can you tell if a dryer heating element is bad?

Inspect the metal wire coil for any breaks in the wire. If the wire is solid and has no breaks in it, the heating element should be good. If the wire has a break in it, the heating element is defective.

Can a dryer heating element get weak?

Heating elements can naturally wear out over time, but overloading the dryer, not cleaning the lint screen and poor ventilation can all speed up that process.

Is it possible to repair heating element?

Heating elements are relatively simple. Heating elements can break and burn out, sag, and become misshapen. Most elements cannot be repaired, but they usually can be replaced. If you can’t remove the heating element to replace it, you’ll probably need to replace the entire appliance.

Are dryer heating elements Universal?

No one manufacturer makes all their dryers the same. Look for the high-limit thermostat on the side of your dryer’s round heating element or rectangular heating element housing. The high-limit thermostat is black, round and has two wires connected to it.

Can I solder a heating element?

Heating elements should never be soldered, as solder melts at around 180 to 190 degrees C, depending on the alloy; this is much too low for heating elements. The manufacturer probably spot welded or crimped the connection (or both).

How long should dryer heating element last?

The heating element can last between 8 and 18 years if the dryer is well-maintained and the vent and lint traps are clean. The heating element can burn out if the dryer is not kept well-maintained.

What would causes a heating element to burn out?

A sudden voltage increase to the element caused by a power surge from the utility company, or by lightning, can be enough to burn out an element. All heating elements have a voltage rating. Voltages above this rating will burn out the element.

Is there a reset button on a clothes dryer?

Many dryers are equipped with a reset button on the control panel. If the motor won’t run, let the dryer cool for about ten minutes. Then push the reset button. If there are no problems with the motor, switches, or electrical system, this should restart the dryer.

How can you tell if a thermal fuse is blown?

How to tell if a thermal fuse has blown? To test if your thermal fuse has blown, touch the right side of your multimeter lead to the right side of the fuse, and repeat with the left multimeter lead. If the multimeter needle fails to move, this indicates the thermal fuse has blown.

How much does it cost to fix a dryer that won’t heat?

Fixing a dryer that does not heat averages $100 to $350. The price for this repair depends on the problem. It might be a problem with the heating element or an issue with the thermostat or igniter when using a gas dryer.

Why is my dryer getting hot but not drying?

There are several reasons why the dryer is heating up, but still not drying clothes and it might take several hours to finally get them dry. The reasons are: clogged exhaust vent, faulty heating element, malfunctioned cycling thermostat or clogged lint trap.

How do you fix a dryer that won’t heat up?

The dryer vent, lint trap, and/or lint screen is suffocating the heating element. When the heating element is blocked, it overheats and shuts down the thermostat. To fix this, clean off the lint screen, and use a vacuum to clean out the lint trap. Then remove the vent hose from the back of the dryer and shake it out.

Should a dryer heating element glow red?

Occasionally, a red glow may be seen inside the dryer drum. This is normal. The glow is from the heating element and is most noticeable if the cycle has been interrupted to remove or add an article of clothing. As the cycle nears the end, the element goes off.

Why do I have to run my dryer twice to get clothes dry?

When a dryer is filled to the top it’s considered overloaded. Overloading leaves no room for the dryer’s hot air to properly circulate and limits tumbling. When this happens you’ll find that your dryer takes two cycles to dry a large load.

Why is it taking so long for my dryer to dry my clothes?

A dryer’s drying time is largely related to the flow of air through the machine and the condition of the venting hose. If air is impeded in its pathway out of the dryer, or if there is a blockage in the venting hose, it could reduce the rate at which clothes are drying in your dryer.

Can a dryer overheat and stop working?

Overheating is a serious concern, and to combat it, dryers have thermal fuses. A faulty or broken thermostat can make a dryer stop working. Replacing the fuse or the thermostat will allow the dryer to work again. A blown thermal fuse from overheating indicates an additional problem, such as improper ventilation.

Where is the thermal fuse on a dryer?

The thermal fuse will be located somewhere by the exhaust vent on your dryer. You will be able to visually identify it by the two wires connecting to it. Removing the front of the dryer and removing the drum might be easier to access the fuse’s location.

What does it mean when your dryer blows out cold air?

One of the most common reasons your tumble dryer decides to blow out cold air instead of hot is, rather ironically, because it has overheated. If your tumble dryer does not have a reset button it is likely you will need to replace your thermostat and thermal overload cut-out (TOC).

How much does a new electric dryer cost?

On average, electric dryer units cost between $600 and $1,800.
