Can I put a higher pressure switch on my well pump?

You can raise the pressure switch-points by adjusting the pressure switch. It’s not uncommon to run at 60/40, and 70/50 is also possible. The limiting factors are: Your pressure switch (though as Ed says, most go to 90 or so)

What should the pressure be on a pressure switch?

For example, if the switch cut-in is 40 PSI then the tank pre-charge should be 35-38 PSI maximum. Another factor that you should consider is the switches are not individually tested which means if you get a switch that is 30-50 PSI it could possibly be 28-48 PSI.

How do you remove the cover of a pressure switch?

Remove the cover of the new pressure switch with pliers and set aside. A wiring diagram is normally found on the inside of the cover. Loosen (do not remove) the screws on the pressure switch terminal with a screwdriver by turning in a counterclockwise direction.

How do you remove a pressure switch from a water tank?

Turn off power to the pump at the main panel. Test the wiring from the main panel to ensure that the power is off. Drain all water pressure from the system via a hose bib on the tank tee or nearest faucet. If you are replacing an old switch, remove existing wires and remove old switch from the system.

When do you Know Your pressure switch is failing?

Here are some tell-tale signs that your pressure switch is beginning to fail: Your water pressure is at or above the cut-out pressure, yet the pump doesn’t turn off. Your pump doesn’t turn on at the proper cut-in pressure. You have low water pressure even though the pump is running.

How do you adjust the water pressure switch?

Adjust the switch counterclockwise using a wrench as you fill the tank with air using an air pump or compressor. To increase water pressure in your well, check the gauge for the proper pressure level every so often.

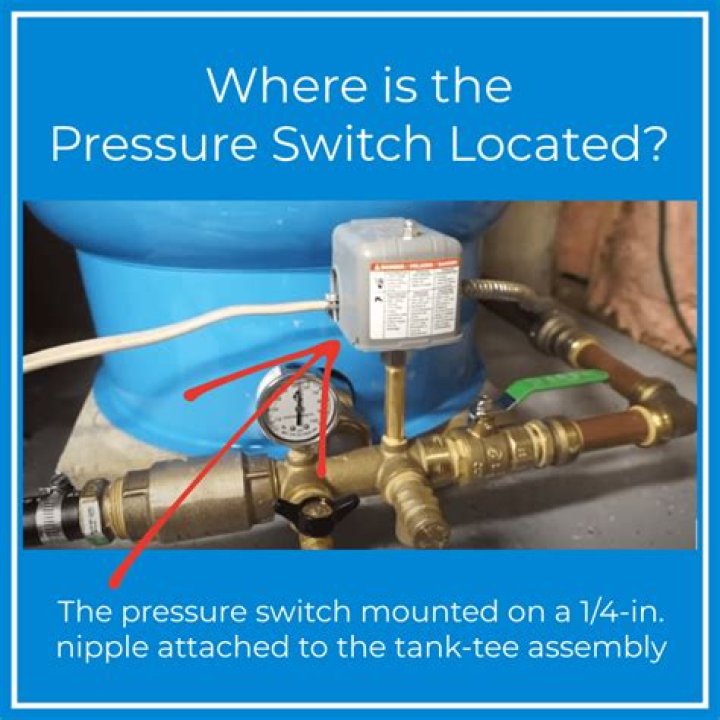

Where is the water pump pressure control switch?

The pump switch will be usually be located on the pump itself (above ground water pumps) or on a tee at the water pressure tank outlet. If your pressure tank and pump controls are not inside the building they may be located in a basement crawl area or outside in a well pit.

What is a well pump pressure switch?

The standard operating pressure per square inch (PSI) range for well pump pressure switches is 20 – 40 PSI, reaching up to 100 PSI, with typical differentials of about 10-40 PSI.

What is a water pressure switch?

Water Pressure Switch. A water pressure switch is a type of hydraulic pressure switch that measures and helps regulate changes in water pressure. A water pressure switch device senses changes in pressure and responds at one or more actuation points by turning on or turning off the water supply, or by triggering an alarm.
