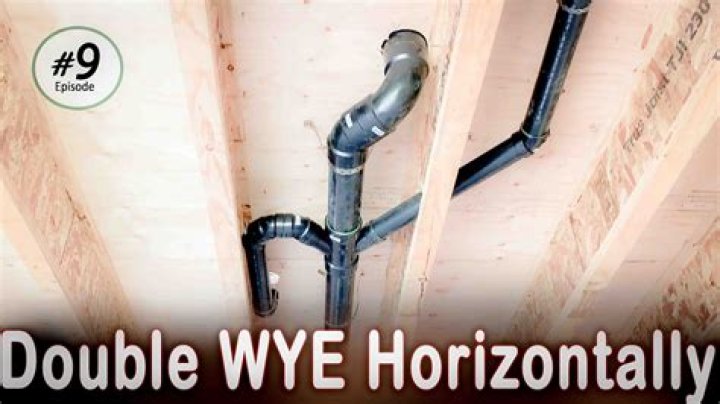

Can a wye be used horizontally?
Rachel Davis Can a wye be used horizontally?
Ans: Wye is only used for going from horizontal to the vertical plane. If you use them horizontally, they will be exposed to clogging.
What is the minimum inch per foot slope allowed for a 2 inch diameter pipe installed horizontally?
704.1 Slope of Horizontal Drainage Piping
| SIZE (inches) | MINIMUM SLOPE (inch per foot) |
|---|---|
| 21/2 or less | 1/4a |
| 3 to 6 | 1/8a |
| 8 or larger | 1/16a |
What’s the maximum fall of a drain line?
The drain line should have a minimum fall of 1/8″ per foot (an 8′ line would have 1″ offall from end to end) and a maximum of 1/4″ per foot. thanks, Tags: horizontal, length, line, maximum.
Is there a maximum length of horizontal line?
There is no maximum, and no need for intermediate vents. Under the UPC, a 3″ line must slope 1/4″ per foot, but a 4″ pipe can slope 1/8″ per foot. The most important thing on a long line like that is to be sure it is straight…no sags or bellies, because that WILL cause problems.
What to do if your toilet drain line runs away from the wall?
If the toilet drain does not connect directly to a vent, you must find another way to vent it. If the drain line runs away from the wall where you want the vent, use a reducing Y and a 45-degree street elbow to point the vent line toward the wall.
How big of a drain line do I Need?
The drain line should have a minimum fall of 1/8″ per foot (an 8′ line would have 1″ offall from end to end) and a maximum of 1/4″ per foot. There is no maximum, and no need for intermediate vents. Under the UPC, a 3″ line must slope 1/4″ per foot, but a 4″ pipe can slope 1/8″ per foot.
How many turns is too many on a waste line?
As it is you should at least call out the 90 degree fitting as you cannot lay a regular 90 horizontally on a waste line. At minimum it should be (2) 45’ s or a long sweep 90, but because it needs to be repaired anyway it should repaired using the single 45 as I stated above.
The drain line should have a minimum fall of 1/8″ per foot (an 8′ line would have 1″ offall from end to end) and a maximum of 1/4″ per foot. thanks, Tags: horizontal, length, line, maximum.
How many turns is too many in a drain line?
Hello Jeffrey… Not sure about the number of turns, (does seem excessive) but with the 50-60 feet of run, you should have a drainage slope of 12.5 to 15.0 inches, (1/4 inch per foot of run) which in your pictures appears to be mostly level. If you didn’t notice 15″ of slope, call it out for that.
There is no maximum, and no need for intermediate vents. Under the UPC, a 3″ line must slope 1/4″ per foot, but a 4″ pipe can slope 1/8″ per foot. The most important thing on a long line like that is to be sure it is straight…no sags or bellies, because that WILL cause problems.
