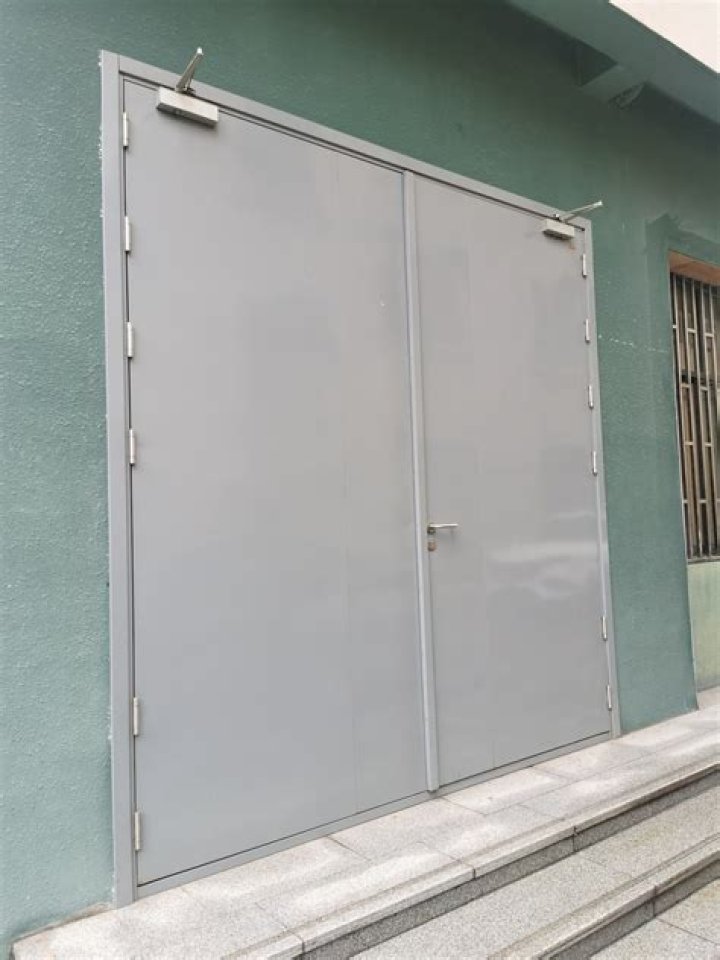

Answer: Yes, most knock down frames (with no welding option on a pressed steel frame) can be fire rated up to 90 minutes provided they are installed correctly in a fire rated partition.

Can a wood frame be fire rated?

A fire-rated wood door frame paired with a Category B door allows tremendous design flexibility while providing a cost-effective door unit. Fire-rated wood frames are the ideal solution in many applications, but are particularly suited to multi-family buildings where occupants desire a truly “homey” feel.

How do you know if a door frame is fire rated?

So, how do you know if your door is fire-rated? Look for the Underwriters Laboratories (UL) or Warnock Hersey (WH) fire label. … The label may also be located on the top or bottom of the door. Some labels are embossed in the frame, so be sure to feel for any texturing/raised surfaces.

Does a fire door require a special frame?

The fire rating of the wall dictates the required fire rating of the door. Fire doors are required to be self closing and positive latching. door frames unless the label specifically states the frame is rated less than 3 hours. hourly ratings up to and including 3 hours for a door frame.

Can hollow metal frames be fire rated?

Hollow metal is probably the most known and widely used fire rated framing around. It is tested to NFPA 80/252/257 up to 90 minutes and used in fire rated doors, sidelites, transoms and openings. that it is code-approved for all 20-90 minute applications.

Why are resilient channels sometimes used in wood frame construction?

Wood-frame construction is particularly efficient in resi- dential dwellings where sound insulation is required. attaching gypsum board to walls and ceilings using resilient metal channels significantly reduces sound transmission (see Figures 3 and 4).

Can a solid wood door be used as a fire door?

The most economical and widely used alternative is the solid-core wood door. Though the thickness of the door is not an issue, a fire-rated solid-core door typically comes 13/4 ” or 21/4 “ thick. The fire rating of a solid-core wood door ranges widely, depending largely on its core materials.

Can a carpenter fit a fire door?

A certain level of competency and expertise is required to fit a fire door to enable that their fire protection properties and regulations are adhered to. However, this does not mean that you are required to be a professional carpenter or door fitter to install one.

Are all residential steel doors fire rated?

Yes, but just because a steel door is “rated” means that it meets your local code standard. You need to know what kinds of tests are applied and how to match those capabilities with your local regulations.

What qualifies as a 20 minute fire rated door?

20 minute fire doors, or 1/3 hour doors are used in 1 hour rated walls to separate corridors where smoke and draft control are required. In residential applications most doors separating the garage from the living quarters require a 20 minute label.

Article first time published on

Are all exterior doors fire rated?

No, typically exterior doors are not fire rated, though they can be. There are a few instances that require an exterior door to be fire rated with the most common being located near an adjacent building or property line.

What is the code for fire rated doors?

The International Building Code requires fire doors to be tested using the positive pressure test—either UL 10C, Positive Pressure Fire Tests of Door Assemblies, or NFPA 252, Standard Methods of Fire Tests of Door Assemblies, with the neutral pressure level at a maximum of 1016 mm (40 in.)

What makes a hollow metal door frame fire rated?

Five Basic Requirements for a Fire-Rated Opening The wall, door frame, door, and hardware must all be fire rated. The door must be self-closing and positive latching (push/pull plates cannot be used on a fire-rated door) and UL approved hinges must be used.

Do fire rated frames have to be welded?

Standard KD frames are assembled in the field and installed in new wall construction. … Field welding of standard KD frames may be possible for new wall construction or existing walls at butted applications. However, field welding is usually not required and may void the fire rating, if any.

What is the minimum fire rating required for a door in a 2 hour fire rated wall?

Doors rated for 1-1/2 hours are required in 2-hour rated walls. These doors are commonly located in stairwells, or other enclosures of vertical passage through a building. They also occur in boiler rooms and in exterior walls that have the potential for severe fire exposure from the outside of the building.

How thick is a 20 minute fire rated door?

Fireglass® 20 is a 1/4” (6 mm) thick fire-rated and impact safety-rated glazing material. It is listed for use in doors with a fire rating requirement of 20 minutes.

Are solid pine doors fire rated?

Classic and versatile, this 4 panel clear pine door comes in three sizes and is ready to be stained or painted to fit your decor scheme. The fire rating of 30 means the door provides up to half an hour of protection in case of fire.

Is a solid oak door a fire door?

Doors that have passed the official test and attained the standard will carry the label, FD30 or FD60 to prove they have the necessary qualities to be sold as ‘Fire doors’. Further guidelines state that doors should be at least 44mm thick of which all fire doors at UK Oak Doors adhere to.

Can you install resilient channel over drywall?

Hanging RC Over Existing Drywall: When adding a 2nd layer of drywall, this should be done on the other side of the wall. If the resilient channel is installed directly over drywall (rather than studs), it creates a mass-air-mass condition that greatly reduces its effectiveness.

Can you install resilient channel over existing drywall?

It should be noted that adding resilient channels to an existing wall (over the existing gypsum) will not increase STC values. There is not enough space between the old and new gypsum for RC to work effectively. A variety of fiberboard-based products have been used to achieve better STC values.

Are resilient channel worth it?

Resilient channels are very affordable and if you choose wisely, their performance will be more than effective for the price. While they may not be the best choice for sound insulation of your house, they are a great choice for hotel rooms or apartment buildings, for instance.

How do I know if my steel door is fire-rated?

A fire door should have a label which would typically be found on the edge of the door between the top and center hinges. The frame should have a label or marking as well.

What is the difference between a steel door and a fire-rated door?

For instance, steel doors are generally viewed as being the best-performing type of commercial door for fire protection. These metal doors are among the only ones capable of providing up to three hours of protection. Wood fire-rated doors generally offer up to 90 minutes of protection.

Are steel doors fire proof?

The short answer is yes, all steel commercial doors are fire-rated. Fire-rated means that they are resistant to smoke and fire, so they meet the minimum standard for fire resistance. But, tolerance varies among types of commercial steel doors.

Do I need to be qualified to fit a fire door?

For fire doors to be an effective method of protection, they have to be not only carefully made but also fitted correctly. … However, there is no formal requirement for people who install fire doors to have any particular qualification or accreditation, so anybody – in theory – can take on the task.

Do you need to be qualified to install a fire door?

Since fire-door fitters do not need to be certified, then it is slightly more difficult to prove you tried to ascertain competency.

Who should fit fire doors?

The only people that should install fire doors are those that are competent and have undergone the correct installation training. There is a renewed Fire Door NVQ that was launched in 2017 between the British Woodworking Federation (BWF) and Neath Port Talbot College.

Is a steel door 20-minute fire rated?

Residential steel-edge doors can hold a 90-minute rating. Residential wood-edge doors can hold a 20-minute rating. The unit rating depends on all components, not just the door rating. Residential steel-edge doors can hold a 90-minute fire rating similar to a true commercial door.

Do staircases need to be fire rated?

As the stairway is the only means of escape from the upper floors, it must be constructed of material that is fire resistant for at least 30 minutes and all habitable rooms along it are required to have FD20-rated fire doors.

Do fire rated doors require smoke seals?

Resolution: Intumescent seals or gaskets are not required on fire rated steel doors. Generally speaking, the requirement for intumescent seals or gaskets are a function of the individual manufacturers’ listing. Intumescent products are typically used for a smoke and fire barrier on wood doors and are activated by heat.

What is the rough opening for a knock down frame?

To determine the rough opening size for a three-sided knock-down door frame, measure the height and width of the door opening. The rough width will be 2 inches larger than the door opening. For a 2-inch face, the rough height will be 1 inch larger than the door opening. Contact LaForce for openings with a 4-inch face.
