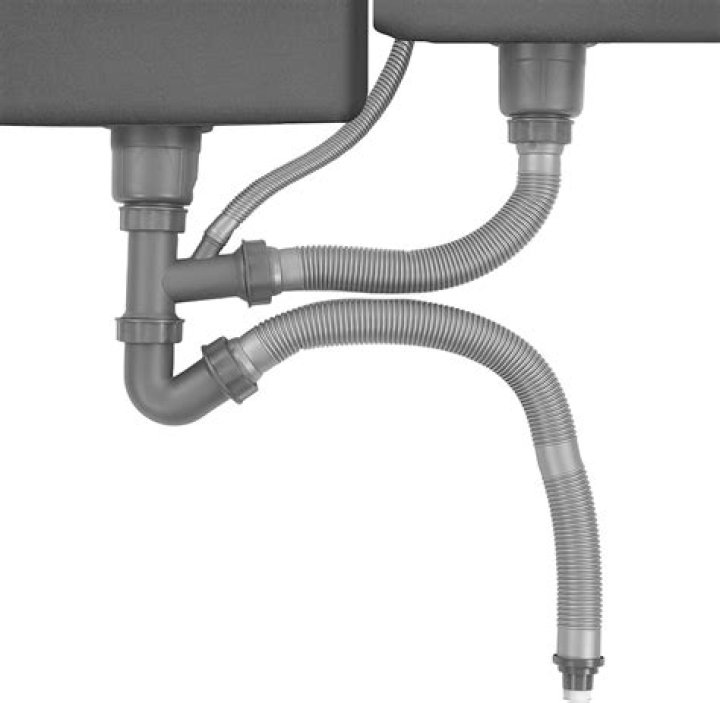

Can a double sink share a vent?

Double bowl vanities can share a vent by means of a cross, with arms no greater than 1’6″ from the center of cross.

How do you install an auto vent in a kitchen sink?

To install an auto vent sink vent: Remove the old trap and drain pipes from under the sink so you have plenty of room to work. Put the trap together and put it loosely on the bottom of the sink pop up drain so you can determine what height to bring the sanitary tee up to. Plan out the layout of the various pipes and fittings.

How does a vent line for a kitchen sink work?

How a Traditional Vent Line Works. In most houses, the drain line for each sink extends horizontally back into a wall, where it fits into a sanitary tee. One outlet on the tee extends downward into a vertical drain line, and the other extends upward into a vent system that is open to outside air.

How do you install an air admittance valve on a kitchen sink?

Slide the trap bend onto the sink drain tailpiece, and slide the trap arm into the sanitary tee fitting. When the pieces are properly aligned, tighten down all slip nuts, using channel-lock pliers. Fill up the sink, then drain it quickly as you watch the fittings from beneath the sink and look for leaks.

How do you install two sinks on one drain line?

In order to do this, you will need to cut a short piece of 3″ PVC, and then put on a 90 degree elbow and attach another piece of PVC so it will come out of the wall. Then you can attach the trap adapter for each sink. Thanks for the thorough answer.

Do you need an in line vent for a kitchen sink?

A kitchen sink that does not drain properly may benefit from an in-line vent. Plumbing drains require proper venting, typically through pipes that extend to the roof to allow air into the drain lines to equalize the pressure and allow gray water to drain.

How do you install a drain coupler under a kitchen sink?

Cut a 3-inch section of 1 1/2-inch PVC pipe, using a PVC cutter or a hacksaw. Apply PVC primer to one end of the 3-inch section and to the inside of the drain coupler in the wall beneath the sink. Apply PVC glue around the primed portion of the 3-inch piece and insert it halfway into the coupler.

What should you not do when installing a sink drain?

Here are some common installation mistakes that you should avoid: When installing the drains, you must make sure that the connections are tightly fastened. However, do not tighten the connections are secure because it can lead to cracks and tension. It also can cause warping, which will allow water to pass through.

Where do you put the AAV in a kitchen sink?

For the AAV you can come off the top of the san tee and then 90 over to the side of the cabinet and then 90 up so the AAV can go up between the side or back of the bowl and the cabinet ( anywhere there is room for it. ) It needs to be a high as possible.
