At what pressure should a boiler safety valve be set?

15 psi
Steam boilers must have at least one safety valve with a set pressure not to exceed 15 psi. The safety valve inlet must not be smaller than NPS 1/2 nor larger than NPS 4-1/2. Cast-iron boilers typically have a few inherent problems.

What is reset pressure in safety valve?

It is designed to open and relieve excess pressure from vessels or equipment. In some cases (not all), it is designed to close again after excess pressure has been relieved from the line/system. Therefore, Discharge pressure of Safety Valve > Operating pressure of system.

How do you adjust the pressure on a safety valve?

The set pressure must be high enough to ensure that there is sufficient margin above the normal working pressure (NWP) to allow the safety valve to close. However, the set pressure must never be greater than the maximum allowable working pressure (MAWP).

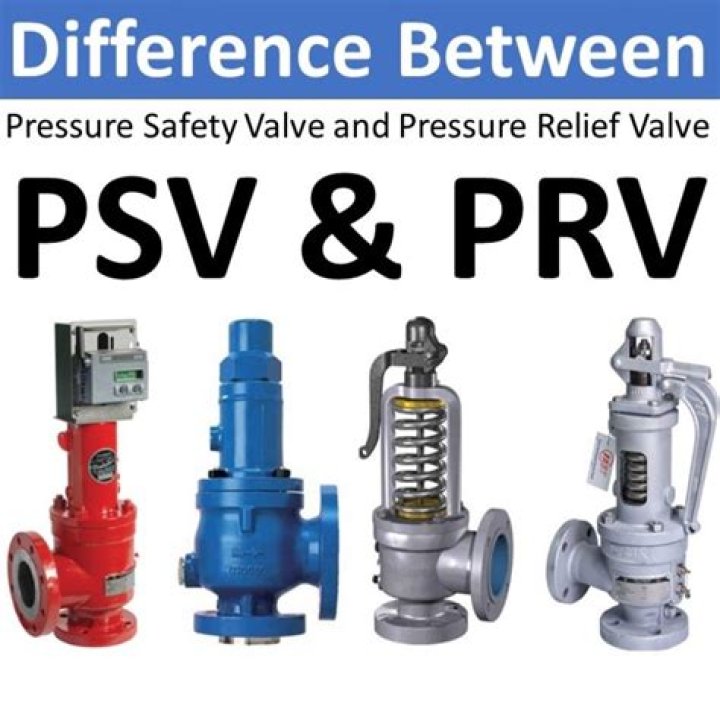

What is the difference between PRV and PSV?

While the term PRV is sometimes used interchangeably with PSV, there is a difference between the two. A PRV opens gradually in relation to the pressure, while a PSV is opened suddenly once the pressure hits a certain level in order to avoid overpressurization and a potential process safety incident.

What is the difference between PSV and PRV?

What should I do if my pressure relief valve blows?

Visit I have a Buderus GA124 Boiler and a LT 200/2 water tank, servicing my wirsbo radiant floor heating and domestic water. The temp/pressure gauge, from the boiler, climbed past 30psi and blew the relief valve. (which is okay, it’s suppose to).

How big is an Emerson pressure relief valve?

Emerson pressure relief devices are manufactured in accordance with a controlled quality assurance program which meets or exceeds ASME Code quality control requirements. Capacities of valves with set pressures of 15psig (1.03barg], or higher, are certified by the National Board of Boiler and Pressure Vessel Inspectors.

When does a pressure relief valve open and close?

Valves begin closing as pressure drops and fully close when the system pressure is restored below the set pressure. Fast-acting pressure-relief valves, also known as pop-safety valves, provide immediate pressure relief. They spring fully open at a set pressure and remain open until the system pressure is restored below the set pressure.

What is the difference between a safety valve and a relief valve?

Safety Valve A pressure relief valve characterized by rapid opening or closing and normally used to relieve compressible fluids. Relief Valve A pressure relief valve characterized by gradual opening or closing generally proportional to the increase or decrease in pressure. It is normally used for incompressible fluids.

What should the set pressure be for a safety valve?

There are two fundamental constraints, which must be taken into account when establishing a safety valve set pressure: The set pressure must be low enough to ensure that the relieving pressure never exceeds the maximum allowable accumulation pressure (MAAP) of the system.

Why does my pressure relief valve keep blowing off?

1. Make up water feeder leaking by is one possibility. Get the water pressure in the system to 15 psi. Shut the make up water off and keep your eye on things. When the boiler heats up the pressure may rise to the low 20s. It shouldn’t go over 25 psi. 2. Expansion tank could be defective. The air pressure in the expansion tank should be 12-15psi.

What should the control pressure of a Spirax safety valve be?

With a control pressure of 5.0 bar set under full-load conditions, it would give 5.2 bar under no-load conditions. Alternatively, if the control pressure of 5.0 bar is set under no-load conditions, the same valve would exhibit a control pressure of 4.8 bar under full-load conditions.

When do you open a pressure relief valve?

Cleaned and bagged for oxygen service and other high-purity applications, these valves can withstand the extreme cold of cryogenic liquids. These valves begin to open at a set pressure and fully open at about 10% over the set pressure for gradual pressure relief.
