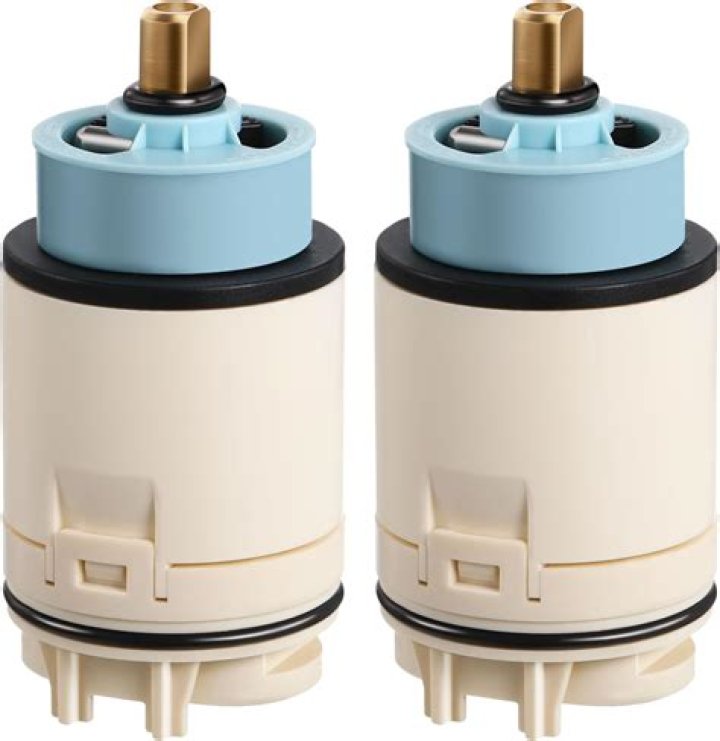

Are shower cartridges interchangeable?

Cartridges aren’t interchangeable among different faucets, so if you decide you need a replacement, you need to know its part number so you can order it from your plumbing supplier or online. That number is usually available on the manufacturer’s website in the online version of the owner’s manual for your faucet.

Why does a shower cartridge go bad?

There are several reasons why the cartridge may have failed; the number one cause is an imbalance in water pressure between the mains cold pressure and the heated hot water. The most obvious is that you have a drip or running water when you turn the handle to the off position. …

What type of faucet stem do I have?

It is easiest for us to identify your stem or handle needs by measuring your stem from the left where the washer is attached to the right where the handle fits on the knurled end (The Broached end). Broached ends are unique by manufacturer and is critical when identifying your stem or cartridge.

How do you take out a single lever shower faucet?

Locate the metal retaining ring or retainer clip or nut, whichever applies, that holds the cartridge in place and, with an adjustable wrench, loosen it and take it out. With a pair of pliers, grasp the tip of the old shower faucet, and pull it straight out from the valve.

Why is my single lever shower not working?

Shower faucets with a single lever have cartridge valves, and when the temperature control doesn’t work, it may be because the valve is broken, clogged with hardened minerals or installed incorrectly.

How do you replace a Gerber shower cartridge?

Slide a new Gerber faucet into the faucet body to replace the old one. Replace the bonnet or dome cap and tighten them to hold the cartridge in place. Install the handle and tighten up the screw to secure this to the cartridge.

Where is the nut on a single lever shower handle?

Open the shower, and let the water drain. Unscrew the handle with an Allen wrench. The nut is usually located just under the lever, but it may be covered by a cap. If so, pry off the cap with a flat-head screwdriver. Pull off the temperature limiter, if there is one.

How to clean a single handle bathroom faucet cartridge?

Using pliers, grab the stem of the cartridge (#1) and pull the cartridge (#1) out. This may require some effort. Note: It is recommended to clean and flush the valve body (#4) prior to installing the new cartridge (#1).

Where can I buy a new shower cartridge?

Depending on which company manufactured the valve, there may be some variations to how the valve cartridge is replaced. This homeowner had a Moen valve and the replacement parts were manufactured by Moen. They can be found at most home centers and plumbing supply stores.

How do you repair a cartridge shower faucet at Home Depot?

Measure an even square on the back wall, and cut the section out with a drywall saw. The valve is mounted to a stringer running between the studs. Cut the copper pipe with a tubing cutter. Cut the pipe going up to the shower, as well as the hot and cold lines below.

How to take a 1225 cartridge out of a faucet?

Remove the twisting tool (#2) and raise the stem of the cartridge (#1) until it stops. Using pliers, grab the stem of the cartridge (#1) and pull the cartridge (#1) out. This may require some effort.
