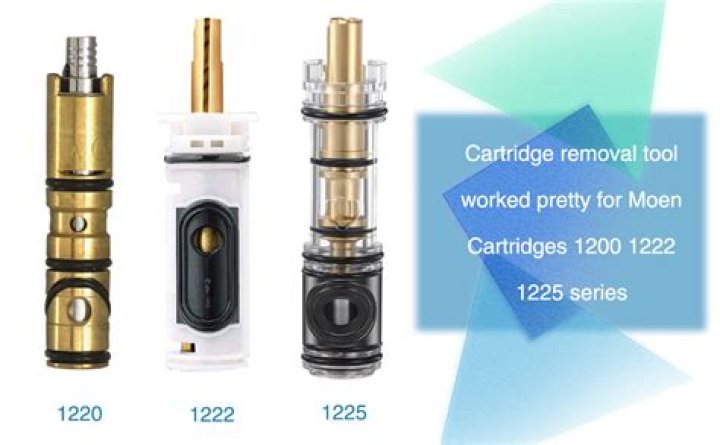

Are Moen 1200 and 1225 cartridges interchangeable?

While the Moen 1200 and the Moen 1225 cartridges are interchangeable, the Moen 1222 Posi Temp cartridge is absolutely not interchangeable with the Moen 1225 or 1200. That’s why it’s so vital that you determine which Moen shower valve you have before buying any replacement parts.

How to replace 1225 cartridge?

Cartridge Removal Use pliers on the white plastic tool and loosen the cartridge by twisting 1/4 turn each direction one at a time. After removing the white plastic tool, grasp the cartridge stem and pull it straight out of the valve (using pliers or an adjustable wrench). You can now install your new cartridge.

What to do before installing Moen 1224 cartridge?

We recommend to always flush the valve before installing the new cartridge: Clean the inside of the valve body with a soft bristled nylon brush (e.g. old toothbrush), to remove any mineral buildup. The next step will send a lot of water through the open valve.

How do you reinstall a Moen faucet cartridge?

Push the cartridge straight into the valve, making sure that the ears of the cartridge are lined up precisely with the clear tabs filling the front and back center openings of the valve body, or 12:00 and 6:00. To reinstall the cartridge into your faucet assembly, reverse the steps that you followed to remove the old cartridge.

How do you reverse the hot and cold sides of a Moen cartridge?

Go to step 8 if you want to reverse the Hot and Cold sides. To remove the cartridge from your faucet assembly, first use a hex wrench to loosen and remove the screw from the front of the handle. Then, pull the handle off from the faucet. Unscrew the Philips screw and remove the adapter.

How can I tell if my Moen cartridge is bad?

By holding the stem down by your hands, try turning water on and feel if there is any noticeable leaking around the area. If you don’t see any water drips, then it can be assumed that the part is not bad. Then the next spot that you need to check is the connecting area where the lever and valve stem that is made of plastic materials.

We recommend to always flush the valve before installing the new cartridge: Clean the inside of the valve body with a soft bristled nylon brush (e.g. old toothbrush), to remove any mineral buildup. The next step will send a lot of water through the open valve.

Push the cartridge straight into the valve, making sure that the ears of the cartridge are lined up precisely with the clear tabs filling the front and back center openings of the valve body, or 12:00 and 6:00. To reinstall the cartridge into your faucet assembly, reverse the steps that you followed to remove the old cartridge.

Why is my Moen balancing cartridge 1222 not working?

Replaced Moen balancing cartridge 1222 b because it would not put out but a little trickle of hot water, no cold. With no improvement, ran wtr through barrel reinsert , not change. What can be the pro … read more I am trying to replace a Moen 1222 cartridge in my shower and it has been a real ordeal… I can’t get it to come out.

What kind of water comes out of a Moen 1222?

I replaced my moen 1222 cartridge in shower and now water only comes out in a trickle. Cannot get water to come out at normal pressure. Any suggestions would be appreciated.
